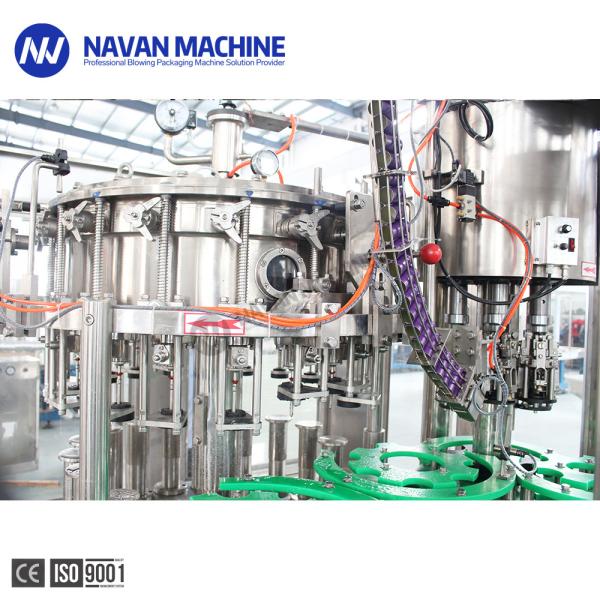

Auto 2-In-1 Glass Bottle Carbonated Sparkling Drink Filling Capping Machine
Main Features
1)Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2) Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3)The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4)High-speed large Isobaric filling valve, filling fast, filling accurate and no liquid lose.
5)Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6)Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc
| Main Technical parameters |
| Model | NPXGF18-6 |
| Produciton capacity(330ml) | 3000-5000 |
| Heads of Filling & Capping | 18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Isobaric filling (twice vacuumized ) |
| Filling temperature (℃) | 0~5 |
| Filling pressure(MPa) | 0.15~ 0.5 |
Details of the Machine
- Glass Bottle Filling
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Company Profile
Zhangjiagang Navan Industrial Co.,Ltd
Zhangjiagang Navan Industrial Co., Ltd. is a professional manufacturer of beverage machinery in China.
Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also alcoholic drink filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.
Our engineers are located all over the world and can provide safe and fast service to your beverage production solutions in your country.
