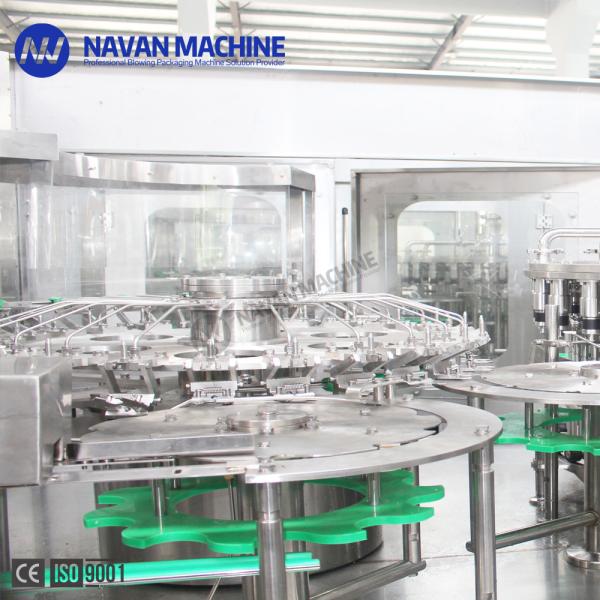

PET Bottle Beverage 5000bph Juice Filling Machine Line

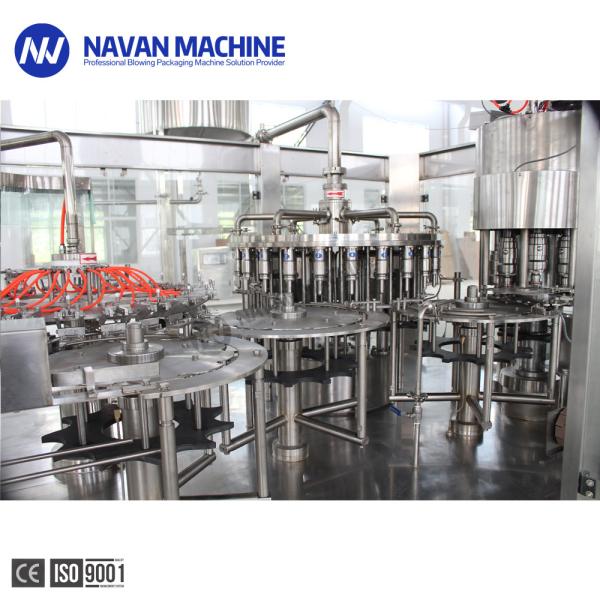

Rinser-filler-seamer
Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.
The design of filling structure is reasonable and without hygiene dead angle,the run of equipment is stable,the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator,after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
Cooling tunnel
PLJ Series cooling tunnel machine is a new design of cooling machine which absorbs advanced technique of the similar domestic and foreign equipment. It adopts the treatment of three-stage circulating cooling water and is used for the cooling of drinks which does not contain gas, such as tea drinks, fruit juice, soy sauce, etc. The cooling time depends on users’ speed regulation. The machine is fabricated of stainless steel (SUS304) and has an aesthetic appearance, whose system is safe and reliable.
Self Adhesive labeling Machine
Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture, convenient to adjust; The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
Product Paramenters:
| Juice Bottlig Machine Technical Parameters: |
| Number of filling valves | 24 |
| Filling speed: | 5000BPH (500ml) |
| Type of bottles | PTE |
| Bottle height | 120-320(mm) |
| Bottle diameter | Φ50-100(mm) |
| Filling temperature | Ambient temperature |
| Filling principle | Gravity filling |
| Filling product | Fruit juice , flavor juice , fruit juice with pulp ,Mineral water, purified water, drinking water, flavor water , soda water , alkaline water , spring water and low alcoholic drinks. |
Product Description
Rinser Station:
Filler station:
Capper Station:
Rotary bottle washer
Principle:
